ASM X4

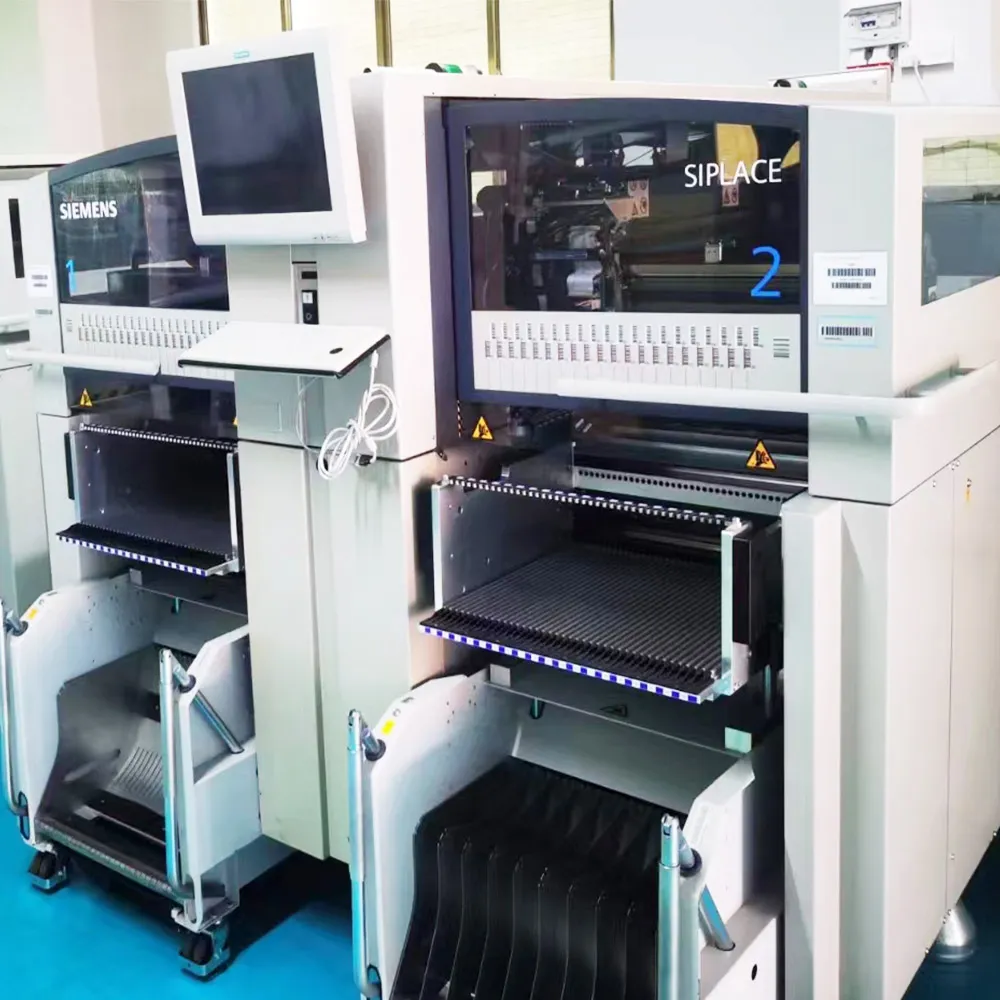

ASM X4 is a new‑generation ultra‑high‑speed modular mounter launched by German ASM (formerly Siemens Siplace). As a flagship mass‑production model, it adopts German linear motor technology, precise motion control and intelligent vision system. Designed for large‑scale, high‑density and high‑reliability SMT production, it is widely used in consumer electronics, server motherboards, 5G communication, automotive electronics and new‑energy control systems, serving as core high‑speed equipment for global large‑scale smart production lines.

It features mounting accuracy of ±15μm, precisely handling components from 0201 ultra‑micro parts to 32mm parts, including resistors, capacitors, ICs, BGA, QFN and precision connectors for fine‑pitch and ultra‑high‑density PCB assembly. Its maximum theoretical mounting speed reaches 70,000 CPH. Equipped with multi‑group high‑speed multi‑nozzle heads driven by linear motors, it delivers fast response, stable motion and high uptime for 24‑hour non‑stop production.

Adopting ASM new‑generation 3D intelligent high‑definition vision system with AI‑powered real‑time compensation algorithms, it achieves fast recognition and ultra‑low rejection rate to improve long‑term production yield. Built with integrated ultra‑rigid die‑cast frame and industrial‑grade shock‑absorbing structure, it features strong anti‑interference performance and minimal precision drift during long‑hour continuous operation.

Fully compatible with ASM intelligent electric feeders, it supports quick changeover, offline programming and full‑process material traceability to shorten downtime for mixed‑variety flexible production. Built‑in industrial intelligent platform enables real‑time monitoring, fault prediction, remote diagnosis and big‑data analysis. Modular design and standardized spare parts ensure efficient maintenance.

With compact modular layout and small footprint, it can be flexibly combined with ASM universal mounters, printers, AOI inspection equipment and reflow solders to form complete high‑end smart SMT lines. Integrating extreme productivity, top‑level precision, low rejection rate and intelligent control, ASM X4 meets mass‑production and high‑precision flexible manufacturing demands, becoming a benchmark high‑speed mounter for high‑end electronics factories.
