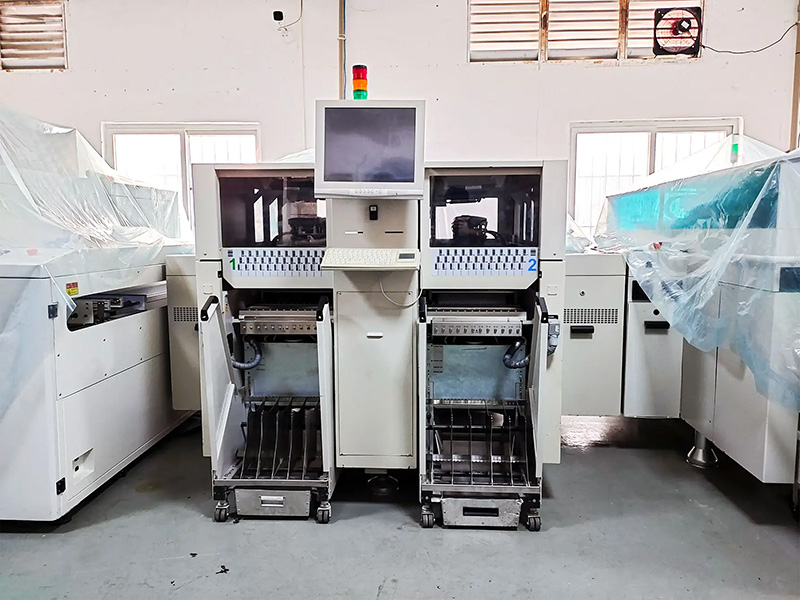

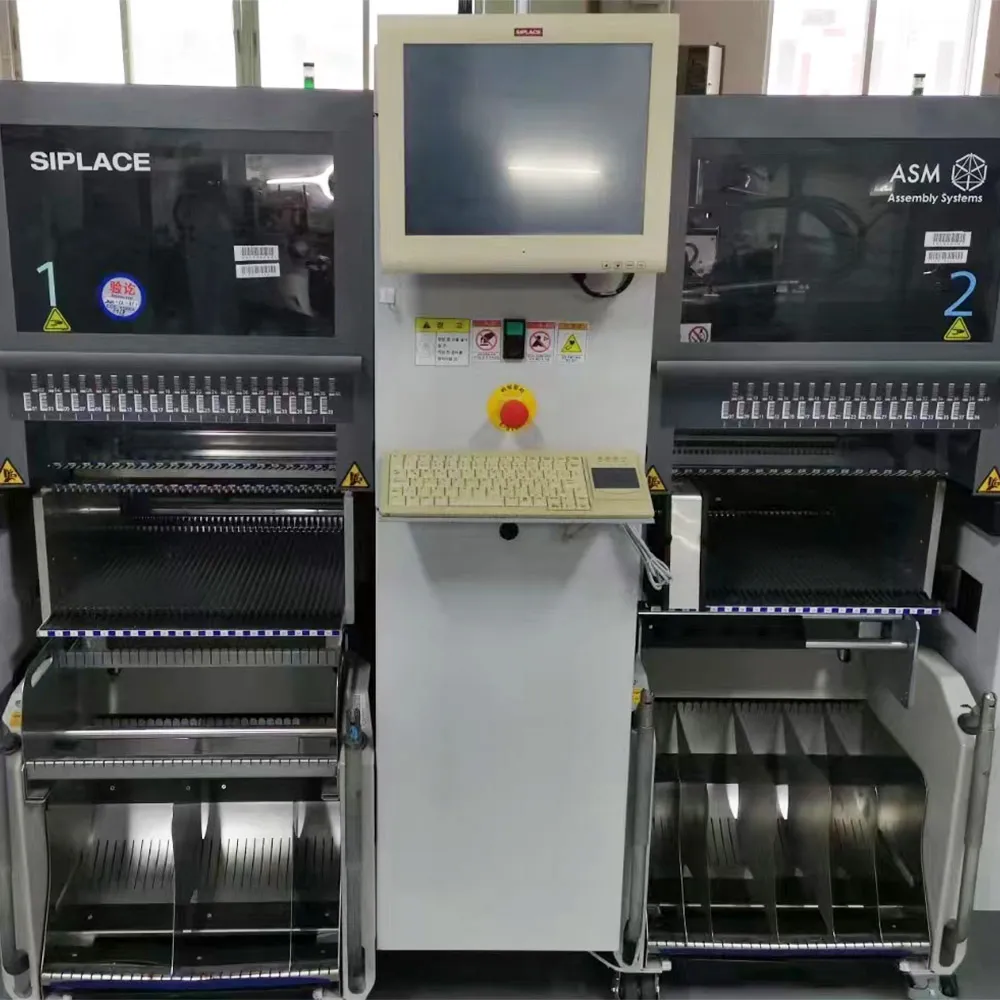

ASM SX4

ASM SX4 is a new‑generation heavy‑duty high‑speed universal mounter by German ASM (formerly Siemens Siplace). Featuring ultra‑large component compatibility, high precision and strong flexibility, it is designed for large‑size and odd‑form component mounting. Widely used in automotive electronics, industrial power supplies, server motherboards, new‑energy control systems and communication base station equipment, it acts as core universal equipment for high‑end SMT production lines.

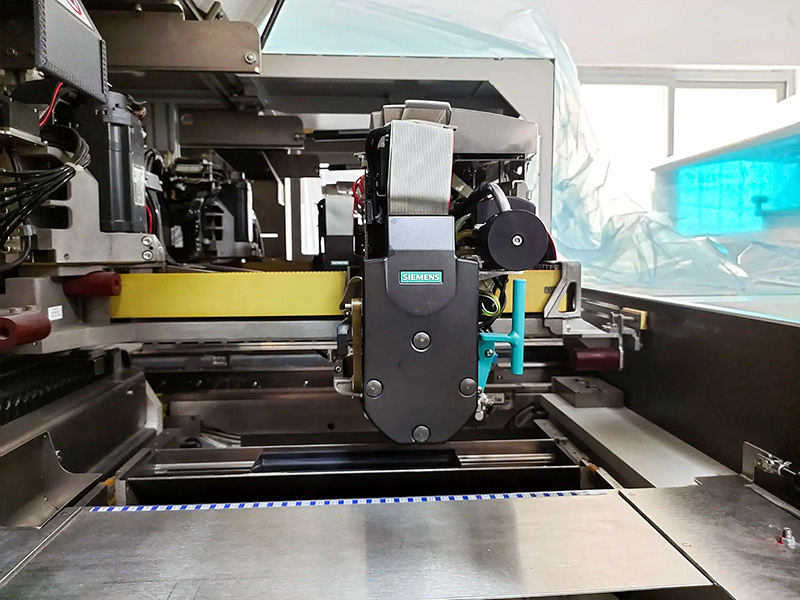

It achieves mounting accuracy of ±20μm, stably handling components from 0201 ultra‑micro parts to 120mm extra‑large parts, including resistors, capacitors, ICs, BGA, QFN, precision connectors and heat‑dissipation modules. It covers full‑range assembly from tiny chips to large structural parts. Its maximum theoretical mounting speed reaches about 32,000 CPH. Equipped with heavy‑duty universal heads driven by linear motors, it delivers stable motion for heavy components and supports 24‑hour non‑stop production.

Adopting ASM flagship 3D intelligent vision system with multi‑angle posture detection and real‑time offset compensation, it precisely identifies large irregular components with ultra‑low rejection rate and excellent long‑term yield. Built with ultra‑rigid integrated die‑cast frame and industrial‑grade optimized shock‑absorbing structure, it features outstanding anti‑vibration performance and minimal precision drift during long‑hour continuous operation.

Fully compatible with ASM intelligent electric feeders, it supports quick changeover, offline programming and full‑process material traceability to shorten downtime for mixed‑variety flexible production. Built‑in industrial intelligent system enables real‑time monitoring, fault prediction, remote diagnosis and big‑data analysis. Modular design and standardized spare parts ensure efficient maintenance.

With compact modular layout, it can be flexibly combined with ASM high‑speed mounters, printers, AOI inspection equipment and reflow solders to form complete high‑end smart SMT lines. Integrating extra‑large‑component capability, high productivity and intelligent control, ASM SX4 fills the gap of conventional universal mounters, suiting mass‑production and high‑difficulty flexible manufacturing, becoming a benchmark universal mounter for large precision electronics production.
