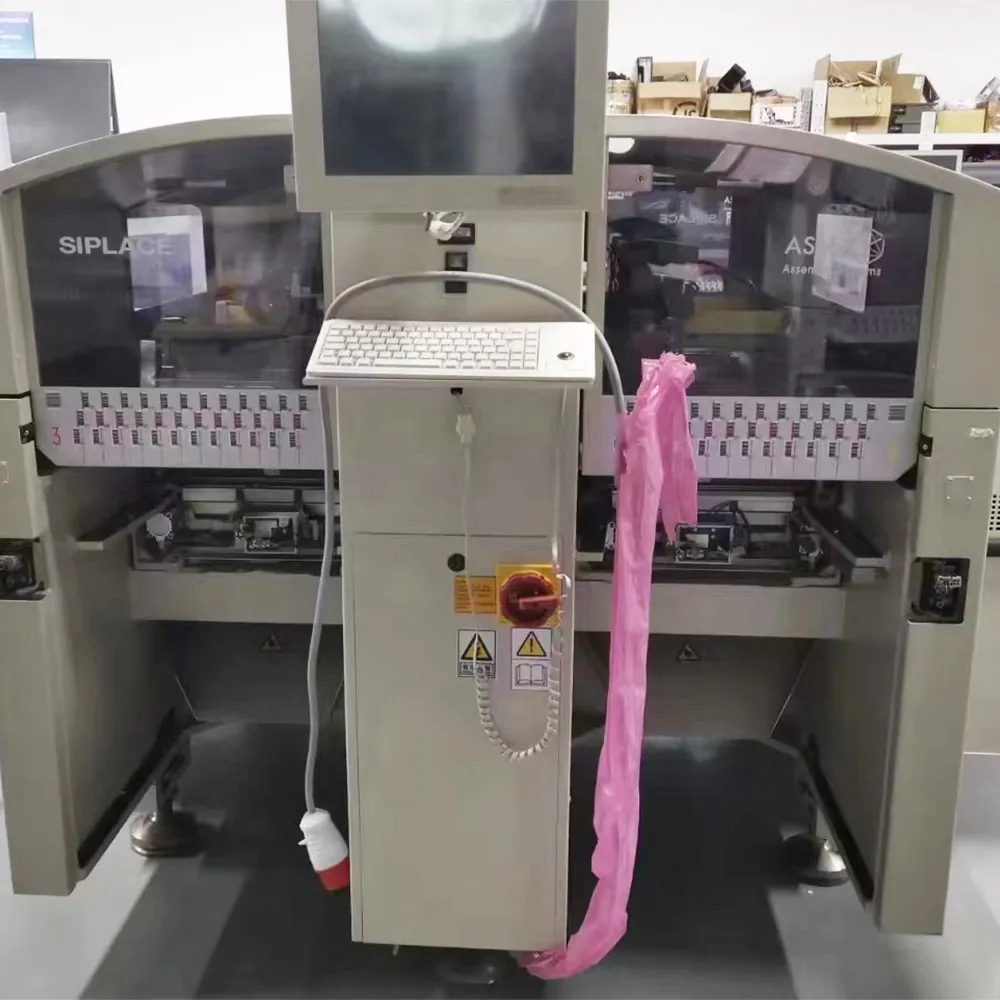

ASM D4

ASM D4 is a new‑generation high‑speed high‑precision modular mounter launched by German ASM (formerly Siemens Siplace). Based on German precision manufacturing technology, it excels in mounting speed, positioning accuracy, motion stability and intelligent management. Widely applied in automotive electronics, server motherboards, 5G communication, industrial control, new‑energy control systems and medical electronics, it serves as core equipment for large‑scale global SMT production lines.

It achieves mounting accuracy of ±15μm, precisely handling components from 0201 ultra‑micro parts to 32mm parts, including resistors, capacitors, flip‑chips, BGA, QFN and precision connectors for ultra‑high‑density PCB assembly. Its maximum theoretical mounting speed reaches 68,000 CPH. Equipped with linear‑motor‑driven high‑speed multi‑nozzle heads, it features fast response and stable cycle efficiency. Multi‑module expansion supports 24‑hour non‑stop production with high uptime.

Adopting ASM self‑developed 3D intelligent vision system with real‑time AI compensation algorithms, it provides fast recognition, pin posture detection and offset correction with ultra‑low rejection rate and excellent long‑term yield. Built with integrated high‑strength die‑cast frame and industrial‑grade shock‑absorbing structure, it features strong anti‑vibration performance and minimal precision drift during long‑hour continuous operation.

Fully compatible with ASM intelligent electric feeders, it supports quick changeover, offline programming and full‑process material traceability to shorten downtime for mixed‑variety flexible production. Built‑in industrial intelligent system enables real‑time monitoring, fault prediction, remote diagnosis and big‑data analysis. Modular design and standardized spare parts ensure efficient maintenance.

With compact modular layout and small footprint, it can be flexibly combined with solder paste printers, AOI inspection equipment and reflow solders to form complete high‑end smart SMT lines. Integrating ultra‑high productivity, top‑level precision, low rejection rate and intelligent control, ASM D4 meets both mass‑production and high‑precision flexible manufacturing demands, becoming a benchmark high‑speed mounter for high‑end electronics industry.
